0473.750

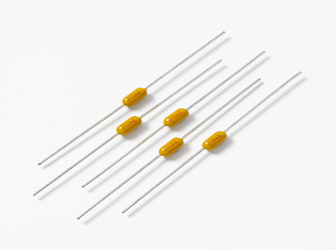

PICO® II Slo-Blo®保險絲在PICO®保險絲，受到公認的可靠性的基礎上，結(jié)合了延時工作特性。
功能與特色:
增強的涌流耐受性
尺寸小巧
寬廣的額定電流范圍（375mA - 7A）
符合RoHS標準
工作溫度范圍廣泛
低溫降額
| 型號 |
Ampere Rating (A) |
Amp Code |
Max Voltage Rating (V) |
Interrupting Rating |
Nominal Cold Resistance （Ohms） |
Nominal Melting I2t(A2sec |
Nom Voltage Drop(V) |
Data Sheet |
|---|---|---|---|---|---|---|---|---|
| 047303.5 | 3.50 | 03.5 | 125 | 50A@125VDC | 0.0240 | 26.80 |
 |
|
| 0473007. | 7.00 | 007. | 125 | 50A@125VDC | 0.0092 | 105.00 |
|
|
| 0473005. | 5.00 | 005. | 125 | 50A@125VDC | 0.0133 | 54.80 |
|
|
| 0473004. | 4.00 | 004. | 125 | 50A@125VDC | 0.0194 | 35.00 |
|
|
| 0473003. | 3.00 | 003. | 125 | 50A@125VDC | 0.0380 | 21.00 |
|
|
| 04732.25 | 2.25 | 2.25 | 125 | 50A@125VDC | 0.0630 | 9.280 |
|
|
| 0473002. | 2.00 | 002. | 125 | 50A@125VDC | 0.0712 | 7.600 |
|
|
| 047301.5 | 1.50 | 01.5 | 125 | 50A@125VDC | 0.1160 | 3.940 |
|
|
| 0473001. | 1.00 | 001. | 125 | 50A@125VDC | 0.3000 | 2.010 |
|
|
| 0473.750 | 0.750 | .750 | 125 | 50A@125VDC | 0.4600 | 0.760 |
|
|
| 0473.500 | 0.500 | .500 | 125 | 50A@125VDC | 1.1300 | 0.210 |
|
|
| 0473.375 | 0.375 | .375 | 125 | 50A@125VDC | 1.7400 | 0.085 |
|
